The ContinuousProportional
transform adapts
values from the driver domain to a bounded range, where the relative concentrations at each
extreme of the range are specified, and the concentrations in between progress as an equal-ratios curve.
The range of values output by ContinuousProportional.convert()
is
controlled by two parameters implemented as Java fields: minRange
and
maxRange
. These have the restriction that
minRange < maxRange
.
The distribution of values between minRange
and
maxRange
is
controlled by two additional parameters: origin
and
goal
. The restrictions upon
origin
and
goal
are these:
minRange < maxRange
.
origin > 0
.
goal > 0
.
Each ContinuousProportional
instance internally maintains a
ContinuousDistribution
instance
which divides the range from zero to unity into trapezoids of equal width. When
goal > origin
,
the trapezoid height for sample value z
is calculated using the formula:
origin * Math.pow(goal/origin, z)
When
goal < origin
the formula is:
goal * Math.pow(origin/goal, 1 - z)
The convert()
method maps a value x
in the driver domain from zero to unity into a value v
in the application-range
from minRange
to maxRange
in two
steps.
The first step uses ContinuousDistribution.quantile()
to recast the driver value x
into an intermediate value
z
, also between zero and unity.
The second step applies the
linear interpolation
formula:
v = (maxRange-minRange)*z + minRange
.
Figure 1 illustrates the influence which
ContinuousProportional.convert()
exerts over driver sequences. This panel was created using the same driver sources used for the
ContinuousUniform
,
which earlier panel provides a basis for comparison.

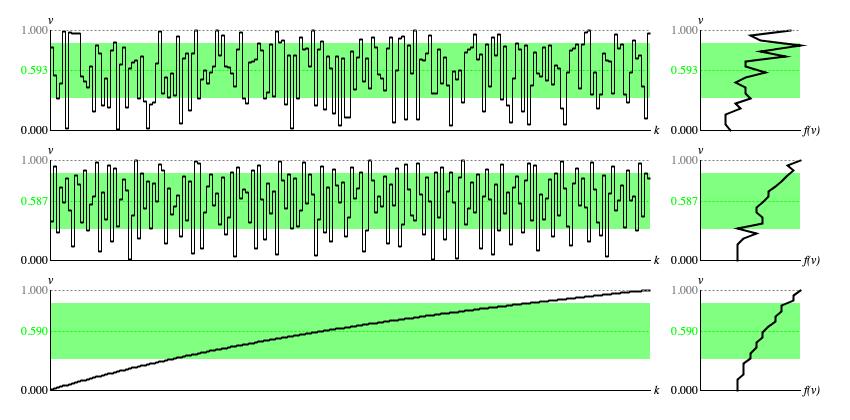

ContinuousProportional
output from three different
Driver
sources. The weight associated with the upper range bound
is three times the weight associated with the lower range bound. Each row of graphs provides a time-series graph of samples (left)
and a histogram analyzed from the same samples (right).
The first row of graphs was generated using the standard random number generator. The second
row was generated using the balanced-bit generator. The third row was generated using an ascending sequence of driver values,
equally spaced from zero to unity.
The standard-random time-series graph (top row of Figure 1) has the same relative ups and downs as the standard-random time-series graph prepared for
ContinuousUniform
, but the
specific values are squinched up toward the upper range bound. This difference becomes much clearer in the standard-random
histogram, where the whitespace separating the vertical v axis from the
smallest f(v) value progressively increases as v
increases from zero to unity. Notice that while these histogram peaks and valleys are similar to those derived for
ContinuousUniform
, they
are not the same. The fact that values squinch upwards means that range values which fell into the bottommost histogram
region in the uniform histogram were spread across the bottom three regions here in the proportional histogram. Likewise the range
values which fell into the topmost histogram region here were spread across three regions in the uniform histogram.
The balanced-bit time-series (middle row of Figure 1) likewise has the same ups and downs as the balanced-bit time-series graph prepared for
ContinuousUniform
with
values squinched similarly. Since balanced-bit sequences strive aggressively for uniformity, the histogram peaks and
valleys are comparatively restrained.
The time-series graph generated using ascending, equally spaced driver values (bottom row of Figure 1) presents the percentile function or CDF for this particular flavor of continuous proportional distribution. The histogram of sample values presents the distribution's probability density function or PDF. The PDF is an equal-ratios curve bending upward from f(v) = 1 when v = 0 to f(v) = 3 when v = 1. Looking back at the time-series graph, notice how the percentile function rises more steeply where the distribution is rarefied and less steeply where the distribution is concentrated.
For each graph in Figure 1 the average sample value is plotted as a dashed green line, while the interval between ± one standard deviation around the average is filled in with a lighter green background. For the ideally uniform driver values plotted in the third row of graphs, the average sample value is 0.590 and the standard deviation is 0.280. The interval from 0.590-0.280 to 0.590+0.0.280 is 2*0.280 = 0.56 = 56% of the full application range from zero to unity. Since the continuous uniform distribution had 58% of samples within ± one standard deviation of the mean, this suggests that with the proportional transform with origin 1 and goal 3 is squeezing 58% of samples into 56% of the application range, giving a concentration rate of 58/37 = 1.04.
ContinuousProportional
implementation class.
The type hierarchy for ContinuousProportional
is:
TransformBase<T
extends Number>
extends WriteableEntity
implements Transform<T>
ContinuousDistributionTransform
extends TransformBase<Double>
implements Transform.Continuous
BoundedTransform
extends ContinuousDistributionTransform
ContinuousProportional
extends BoundedTransform
Class ContinuousProportional
has superclass
BoundedTransform
, while class
BoundedTransform
in turn has superclass
ContinuousDistributionTransform
. Class
ContinuousDistributionTransform
embeds a
ContinuousDistribution
instance capable of approximating most any continuous distribution as a succession of trapezoids.
Each ContinuousDistribution
trapezoid item has
left
, right
, origin
,
and goal
fields.
Of the single item for ContinuousProportional
, left
is zero,
right
is unity, origin
is set equal to ContinuousProportional.origin
, and
goal
is set equal to
ContinuousProportional.goal
.
Notice that the trapezoid ranges from zero to unity, not minRange
to
maxRange
. The trick with leveraging ContinuousDistribution
instances is that the succession of trapezoids needs recalculating every time a parameter changes. Updating one single trapezoid item is
not that big a deal, but more typically the number of will be 20 or more (my canned Normal distribution uses 200 trapezoids); also, the calculating
formulas often include exponents. So it makes sense to abstract the range boundaries out of the distribution and to apply range scaling
separately.
The distributing step of conversion happens in ContinuousDistributionTransform
,
where the convert()
method does this:
return distribution.quantile(driver);
Range scaling happens in BoundedTransform
,
where the convert()
method does this:
return interpolate(super.convert(driver));
And BoundedTransform.interpolate(factor)
does this (ignoring pesky initialization checks):
return (maxRange-minRange)*factor + minRange;
.
ContinuousProportional
has a valid
field
to flag parameter changes. This field starts out false
and reverts to false
with every change to either origin
or goal
. Each call to ContinuousProportional.convert()
begins by testing valid
. If a parameter change has rendered the distribution invalid,
convert()
calls on the distribution to regenerate its single trapezoid item
